DU belt vacuum filter
DU rubber belt vacuum filter is an equipment that using vacuum negative pressure as impetus to separate the solid and liquid. The filter district is arranged levelly to sequentially finish the procedure of filter, rinse, dry and regeneration of the filter cloth with high efficiency, high output, good rinsing effect, low moisture, agile operation and low repair cost. It can be used to separate solid and liquid in the fields of metallurgy, mine, chemical industry, papermaking, food, pharmacy and environmental protection, especially for dehydration of gypsum in the process of smoke desulfurization.
Technical features:
A. The process of the feeding, filter cake washing, sip up, unloading, filter cloth recycling can been continuous and achieved high automatically.
B. The filtration liquor and each washing liquor can be collected separately and it can wash slurry by the methods of the multistage current or the countercurrent washing.
C. It is flexible to assemble equipment because of the mudular structure and convenient for the transportation and installation according to the field to adjust the Length and width.
D. It is convenient to remote automatic control and scene control for DCS.

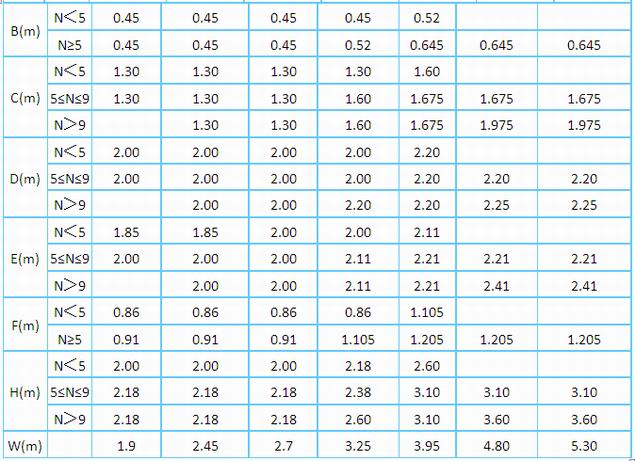

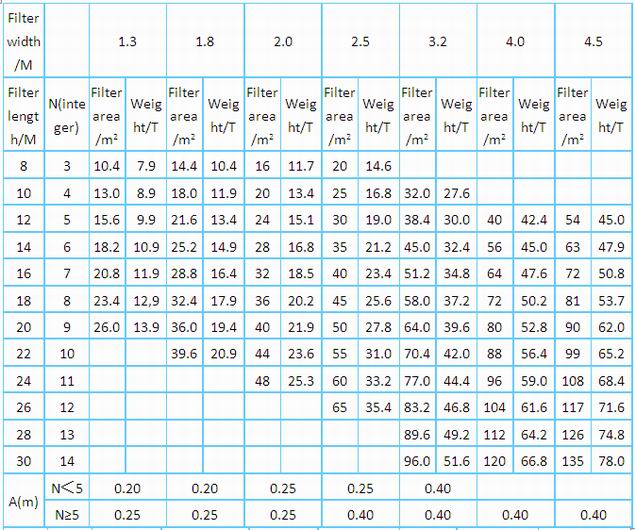

DU Technical parameters:
Use range
Acessory
Rubber belt curb | Friction belt |
Nozzle | Air bag |
Support roller | Bearing base |
Automatic no potential difference filtrate tank | Rubber filter belt |
Support roller |
none
