DY Belt filter press

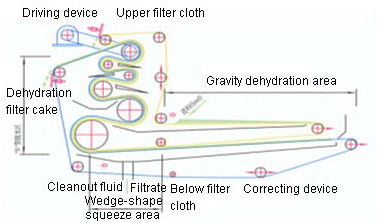

DY series belt filter press is widely used sludge dewatering, with continuous production, low power consumption, large capacity and easy operation and maintenance advantages. The machine has a long gravity dehydration zone, wedge dehydration area, pre-pressure dehydration area, extrusion dehydration zone and other dehydration system. First of all free water and mud fully separated, and then gradually dehydration of sludge dewatering, so that the sludge to achieve better dehydration effect. The machine adopts the pneumatic system to automatically adjust the deviation and synchronize the filter belt, the filter belt speed stepless adjustable, the material for the polyester monofilament, with plain and spiral net, to adapt to different types of sludge, and to ensure that The equipment is running normally. The machine is semi-closed-type structure, the material for special anti-corrosion treatment, with a reasonable structure, beautiful appearance, long life and other advantages. Features: |

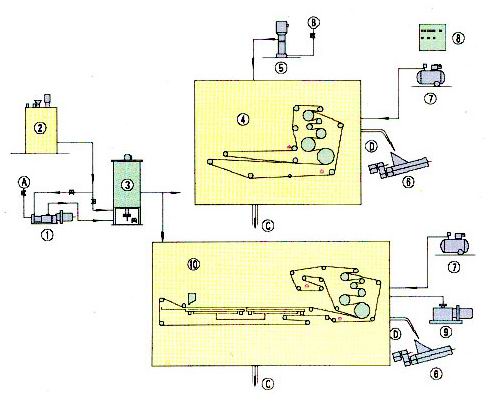

Typical flow sheet

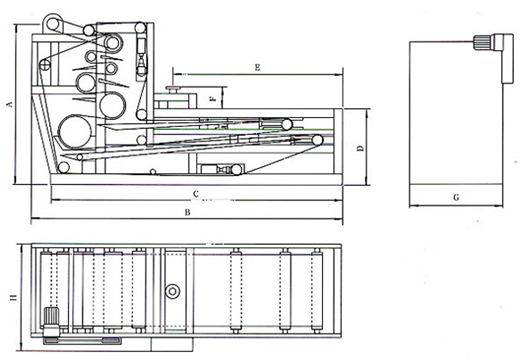

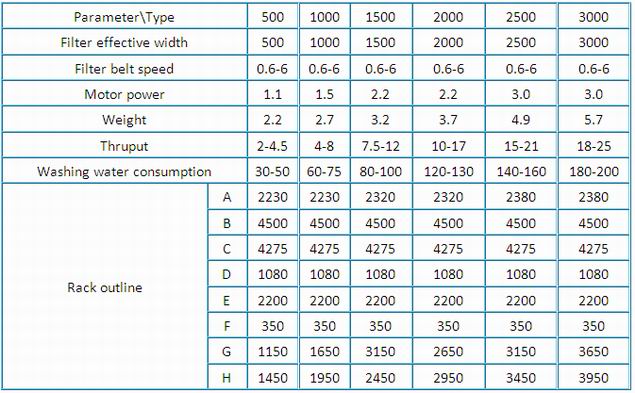

Parameter
