HVPF vertical automatic filter press
Device Profile and Features:
It is a solid-liquid separation equipment with high-efficiency, energy-saving and high automation degree. This equipment adopts the pump pressure, material gravity and air pressure or water pressure to form the differential pressure on both sides of the cloth, so it can achieve the high efficiency solid-liquid separation. It widely use in mine, metallurgy, chemical industry, environmental protection, medicine, foodstuff and etc.
Characters:
1) The layered structure of filter plate adopts guide device to make sure the smoothly running.
2) It can continuously automatically finish the operation in the process of filtering, extrusion, washing, drying, discharge and filter cloth regeneration;
3) The filter pressure can reach 1.6Mpa. Especially have good effect on various sticky tiny materials and low moisture of filter cake;
4) Hydraulic pressure is adopted in the drive device; keep the equipment safety in operation;
5) Adopts PLC + touch screen + automatic valves to control, with the characteristics of flexible and simple operation, reduce the production cost and working strength;
6) Compact structure, covers small area, large pressure and high working efficiency;
Shape Design Guidance:

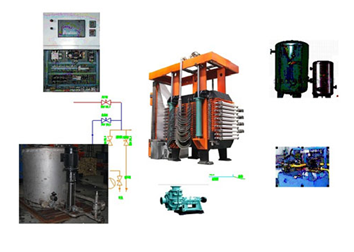

It consists of host, hydraulic station, water station, cleaning system and control system

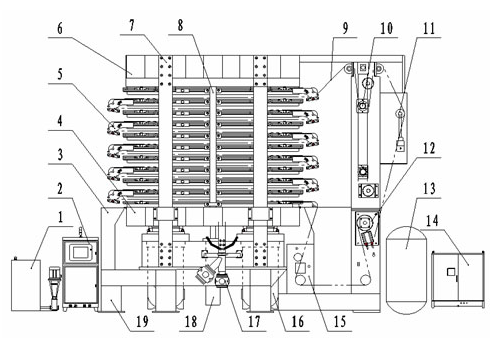

1.Bottom pressing board 2.Vertical column 3.Rapid reaction cylinder 4.Top pressing board 5.Upper frame 6.Filter cloth transforming device and filter disc groove 7.Frame unit 8.Roller 9.Pipe road 10.Guiding block 11.Hydraulic device 12.Control cabinet 13. Valve 14. Filter cloth Hydraulic pipe road Side protection cover and maintenance platform

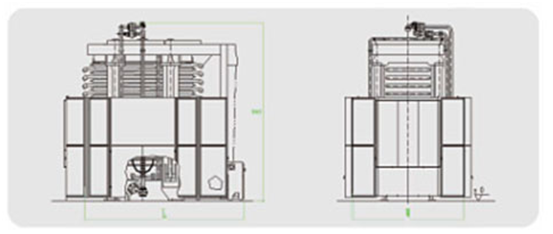

Size chart appearance and technical parameters:
